From USD 329
Reflex I/O — Rugged Turnkey Industrial 4G RTU & Remote Edge I/O Controller (RS485 / Analog / Relay Outputs)
The Reflex I/O by IoT Systems is a factory pre-wired, all-in-one industrial telemetry hub designed for harsh outdoor and commercial environments.
- 4G LTE
- Industrial RTU · SMA antenna port
- RS485
- Modbus RTU · Master / slave
- 4x
- Analog inputs · 4–20 mA or 0–10 V
- 230VAC
- Relay outputs · Up to 5A / channel
Product images
Industrial 4G RTU
Reflex I/O
Rugged 4G remote I/O controller with RS485, analog inputs and relay outputs — pre-wired and ready to mount.
- Weatherproof IP68 enclosure
- Direct 230VAC or 24VDC switching, no extra contactors
- Native IoT Pulse integration — no gateway to configure
Available in 4 variants
Multi-input RS485 Modbus telemetry hub for dense smart metering and sensor arrays.
USD 329
Turnkey telemetry
Stop spending hours designing custom junction boxes—mount, connect your sensors, and monitor your facility in minutes.
Encased in a heavy-duty, weather-sealed enclosure with IP-rated waterproof cable glands, it combines high-performance 4G cellular telemetry, RS485 Modbus RTU communication, precision analog sensing, and high-voltage relay switching into a single drop-in package.
Scroll to explore
Key features
A closer look at the Reflex I/O.
Key features
01 / 06
Rugged Weather-Resistant Enclosure
Heavy-duty housing featuring screw-cap waterproof cable glands and robust external mounting ears.
Key features
02 / 06
True Turnkey Deployment
Factory pre-wired with DIN rail terminal distribution and internal power routing—no custom assembly or separate cabinet required.
Key features
03 / 06
Direct High-Voltage Load Switching
Optional relay channels handle direct 230VAC mains or 24VDC loads without external contactors.
Key features
04 / 06

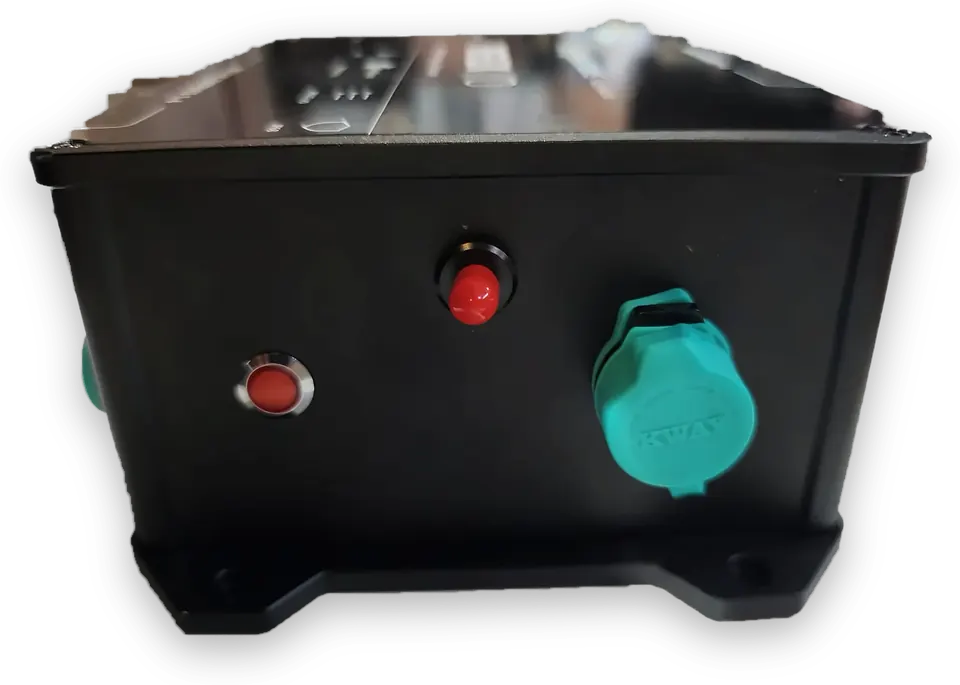

Status Visibility
Instant power, network, and communication link status LEDs visible upon inspection.
Key features
05 / 06
Versatile Sensor Interfacing
Reads standard industrial sensors via multi-drop RS485 Modbus RTU, 4–20 mA current loops, or 0–10 V voltage signals.
Key features
06 / 06

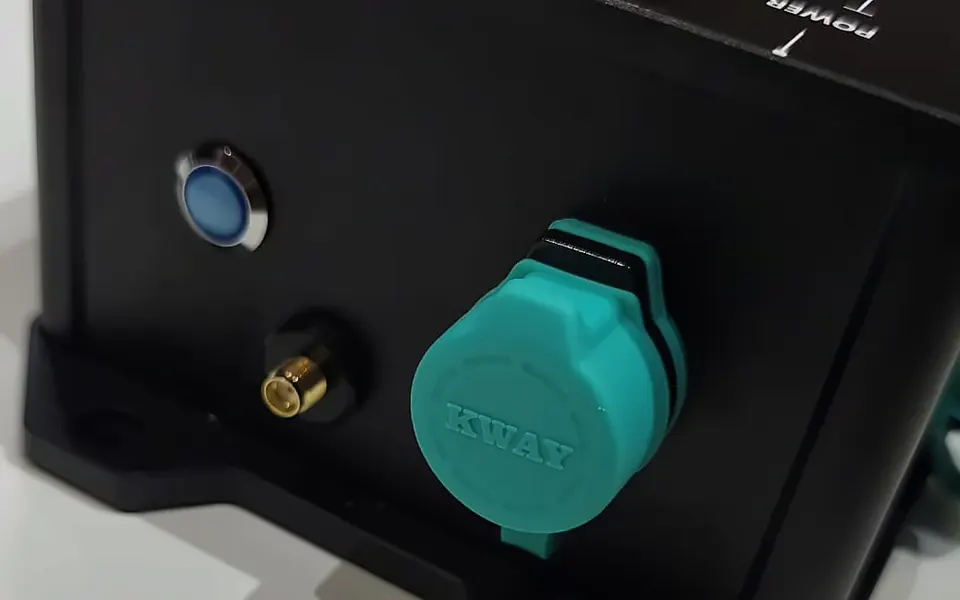

Reliable Cellular Backhaul
Integrated industrial 4G LTE RTU engine with external SMA antenna port for uninterrupted data upload in low-signal areas.
Key features
Engineered for rapid field commissioning, the Reflex I/O bridges the gap between field sensors, heavy machinery, and cloud dashboards. Whether monitoring greenhouse microclimates, automating commercial HVAC & lighting, or tracking decentralized pumps and energy meters, this unit eliminates the overhead of sourcing separate DIN rail power supplies, enclosures, relays, and cellular gateways.
Inside its sealed housing, an integrated industrial 4G RTU pairs with dedicated terminal blocks and optional onboard power relays capable of direct switching up to 230VAC. With industrial-grade circular waterproof connectors and an integrated SMA external antenna, the Reflex I/O guarantees consistent connectivity and data integrity even in moist, dusty, or electrically noisy installations.
True Turnkey Deployment
Factory pre-wired with DIN rail terminal distribution and internal power routing—no custom assembly or separate cabinet required.
Rugged Weather-Resistant Enclosure
Heavy-duty housing featuring screw-cap waterproof cable glands and robust external mounting ears.
Reliable Cellular Backhaul
Integrated industrial 4G LTE RTU engine with external SMA antenna port for uninterrupted data upload in low-signal areas.
Direct High-Voltage Load Switching
Optional relay channels handle direct 230VAC mains or 24VDC loads without external contactors.
Versatile Sensor Interfacing
Reads standard industrial sensors via multi-drop RS485 Modbus RTU, 4–20 mA current loops, or 0–10 V voltage signals.
Status Visibility
Instant power, network, and communication link status LEDs visible upon inspection.
- Connectivity
- 4G LTE Industrial RTU (Band support for global M2M/IoT), SMA Antenna Port
- Serial Interface
- RS485 (Modbus RTU Master/Slave support)
- Analog Inputs (Variant Dependent)
- 4x Channels: Selectable 4–20 mA (current) or 0–10 V (voltage)
- Digital / Relay Outputs (Variant Dependent)
- 4x Channels: 24VDC or 230VAC (up to 5A/channel) dry/wet relay contacts
- Enclosure Rating
- Ruggedized weatherproof housing (IP68 rated)
- Mounting
- Wall / Panel mount with external flange bracket holes

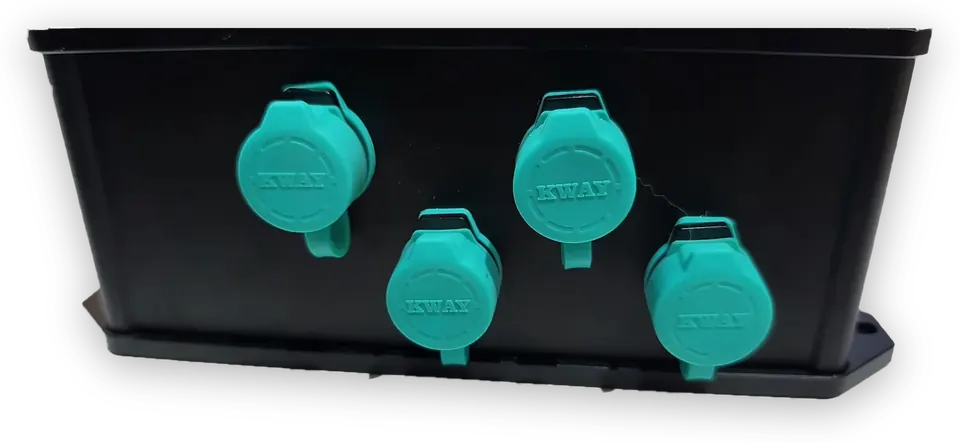

- Cable Glands / Connectors
- Multi-port waterproof threaded glands with protective sealing caps
- Operating Temperature
- -20°C to +70°C industrial range
Works with IoT Pulse

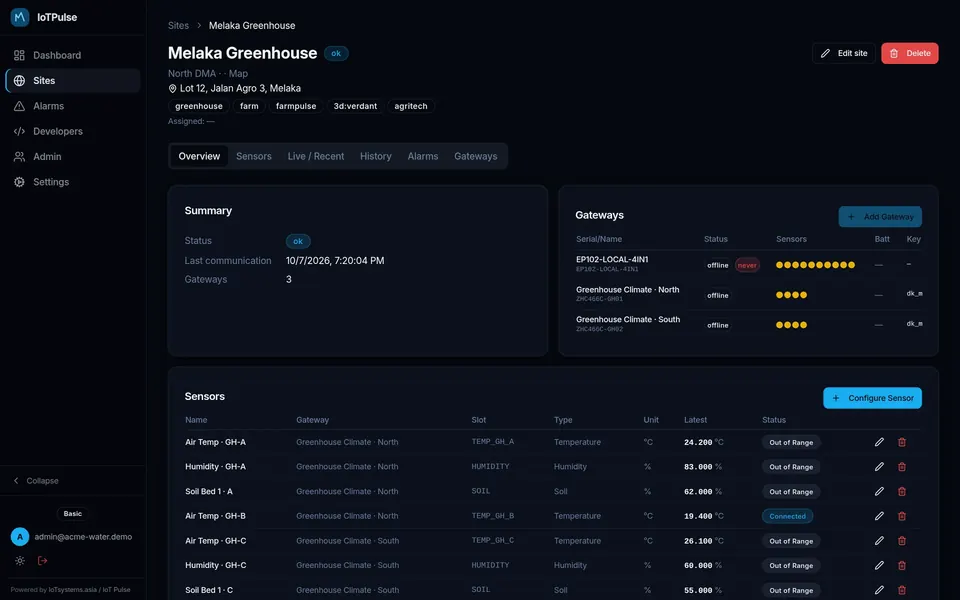

Configure sensors, calibrate remotely and switch relays from your browser. Add platform access and global cellular data for USD 19 per device per month.
Explore the platformNot sure which version you need?
Answer three quick questions and we suggest a setup with a starting price. Send it to us and we already have your answers.
Suggested setup
Choose what each site must do and your suggested setup appears here.
Configure & order
Choose a variant, set quantity and send us your request — no payment is taken now.
Step 1 of 3 · Configuration
Choose your configuration
90-day evaluation kit
Everything you need to prove the value on one site before you scale.
- 1x Reflex I/O (230VAC variant)
- 2x standard sensors
- Pre-activated cellular data
- 3 months of full platform access
Deploying across many sites? Join the SI Partner Program.
Join the SI Partner Program for volume pricing, white-labelled dashboards and multi-tenant fleet management.
